Product Description
-

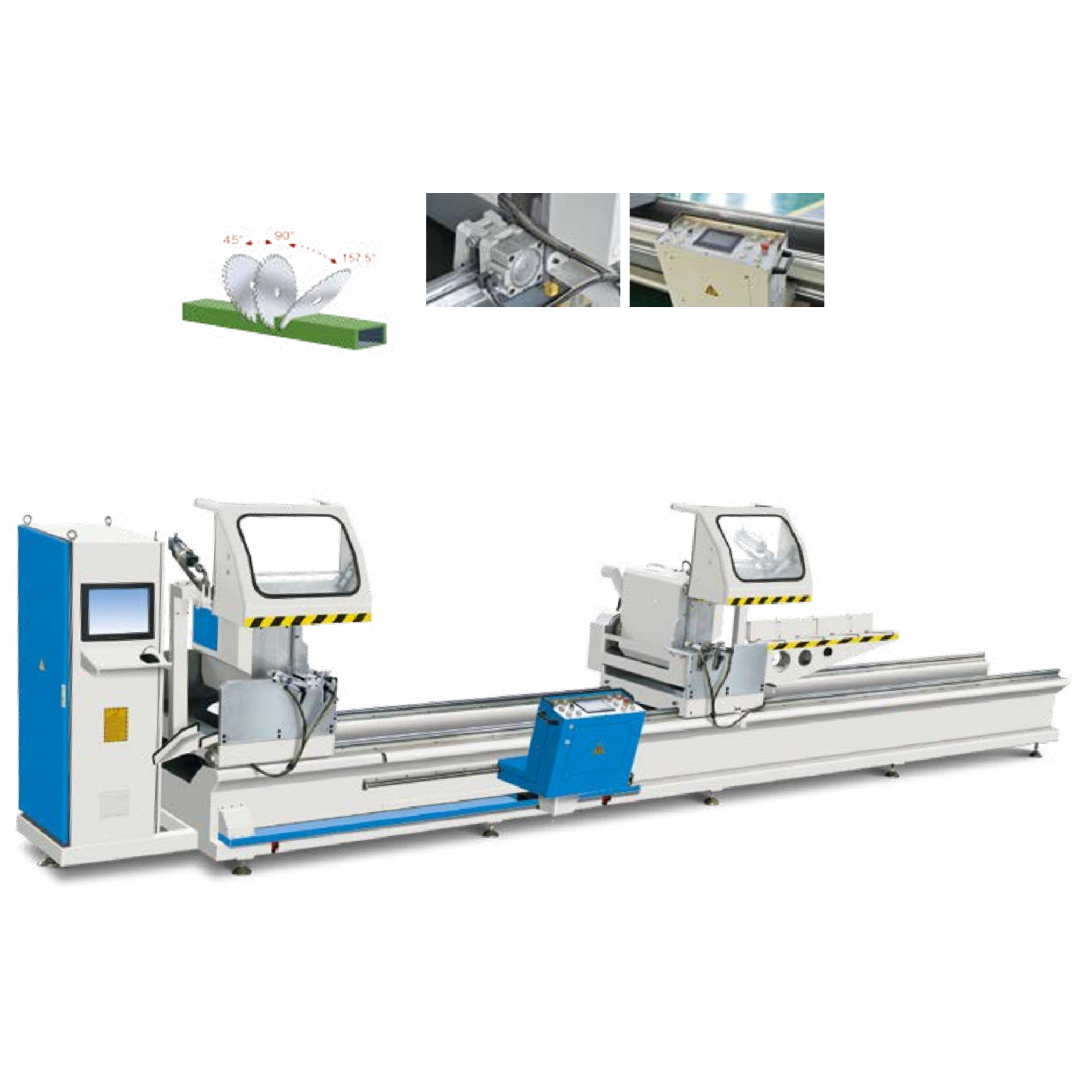

Automatic Head Rotation: The cutting head automatically rotates internally and externally, supporting 45°, 90°, and -45° cutting angles, with exceptional performance for short material processing.
-
User-Friendly Operation: Simple to use, reliable performance, advanced technology, and easy maintenance.
-
Imported Digital Magnetic Scale System (for digital display models): Automatically displays cutting length with high repeat positioning accuracy and convenient operation.
-
Carbide-Toothed Saw Blades: Deliver fast cutting speed, high productivity, and exceptional machining precision.
-
Dual Saw Heads Flexibility: Operate independently or simultaneously for adaptable production needs.
-
Simultaneous Cutting Efficiency: Achieves required length and both end angles of profiles in a single operation.
-
Motor Phase Sequence Protector: Enhances electrical safety in the circuit system.
Product Parameters
| Technical Parameters | |
| Power supply | 3 Phase four wire 380V/50Hz |
| Cutting head motor power | 2x 2.2 kW |
| Rotate speed | 2800 r/min |
| Saw blade swing angle servo motor power | 0.9kW×2 |
| Cutting head horizontal move servo motor power | 1.5kW |
| Cutting head turn angle motor power | 0.18kW x 2kW |
| Woring air pressure | 0.5-0.8MPa |
| Saw cutting length | Max 5300mm |
| Saw cutting width x height | Max120 x 230 mm 90° |
| Saw cutting angle | blade 45° ~ 157.5° arbitrary angle |
| Cutting feed speed stepless speed regulation | 0~ 3m/min |
| Blade specification | φ500 x 4.4 x φ30mm Z=120 |
| Overall size | 7500 x 2450 x 1700mm |
| Weight | about 2000kg |
FAQ
Q1: Are you a manufacturer?A:Yes, we are a professional manufacturer with our own factory. You are welcome to visit us anytime.
Q2: Is your quotation based on the retail price for a single unit or the agent price?
A: Actually, the price is the same whether you buy just one unit or become an agent. But here’s the good part—if you’re an agent, we won’t sell in your designated territory at all. So even though the price is the same, you get full protection and exclusive opportunities in your market.
Q3: What are your payment terms?
A: We generally require staged payments: a 20% deposit upon order confirmation to secure production, and the remaining 80% balance should be settled before shipment.
Q4: Can I watch a real video of the machine before purchasing?
A: Absolutely! We provide demonstration videos, authentic customer feedback, and can arrange a live video call to show you the machine in actual operation.
Q5: What is your warranty policy?
A: Our warranty policy is as follows: Basic Warranty:
A:One-year warranty for the whole machine.
B:Two-year warranty for core components (excluding consumables/spare parts).
After the warranty period: customers can purchase consumables and spare parts at distributor prices for life, and receive repair guidance via video or email.
Q6: Do I need to pay import taxes? How about the customs clearance process?
A: Import taxes depend on the regulations of your country/region. Normally, you need to pay local duties/taxes by yourself. However, we will prepare all necessary documents and assist you during the customs clearance process.
Q7: What is your production and delivery time?
A: For standard models, delivery usually takes 3–15 working days. For customized equipment, delivery usually takes 10–35 working days.
Q8: What kind of operation guidance do you provide after purchasing the machine?
A:English manuals and video tutorials.
B:One-on-one online training.
C:Option to dispatch professional engineers for on-site installation, commissioning, and training.
Q9: Can you deliver to my country? How much is the shipping cost?
A: Yes, we provide worldwide delivery service. Please provide your city and country/region, and we will recommend the best shipping method (by sea, air, or door-to-door) and offer you an accurate freight quotation.
Q10: Can I request customized equipment?
A: Of course. We can meet diverse customer needs. You can customize machine size, functions, materials, voltage, color, logo, and even the complete production line layout.
