Product Description

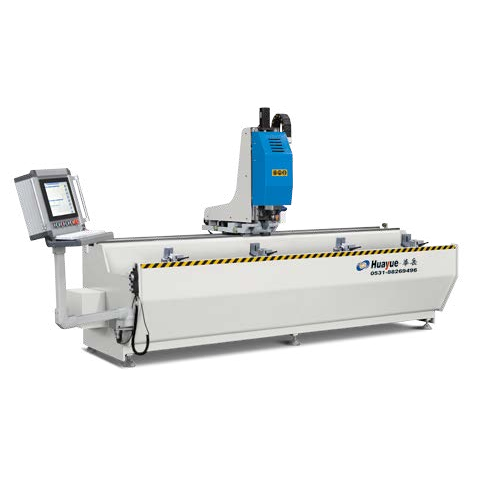

This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.
-Using advanced industrial CNC systems, friendly machine interface and operation is simple.
-Suitable for aluminum,aluminum/wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.
-Bed made of high strength steel welded structure,completed after thermal aging treatment of machining in one clamping.
-Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion,positioning and processing of high precision.
-Using advanced industrial CNC systems, friendly machine interface and operation is simple.
-Suitable for aluminum,aluminum/wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.
-Bed made of high strength steel welded structure,completed after thermal aging treatment of machining in one clamping.
-Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion,positioning and processing of high precision.
Product Parameters
| 技术参数 / Technical Parameters | |
| 电源 / Power supply | 380V/50Hz |
| 工作压力 / Air pressure | 0.6-0.8MPa |
| 总功率 / Total power | 6.5Kw |
| 主轴功率 / Main axis power | 3Kw |
| 最高转速 / Max rotary speed | 18000/min |
| X轴行程 / X-axis speed | 1200mm |
| Y轴行程 / Y-axis speed | 300mm |
| Z轴行程 / Z-axis speed | 280mm |
| X轴速度 / X axis speed | 0-60m/min |
| Y轴速度 / Y axis speed | 0-48m/min |
| Z轴速度 / Z axis speed | 0-20m/min |
| 工作尺寸 / Overall dimension | 2200 × 1500 × 1950mm |
| 重量 / Weight | about 610kg |
