Glass Edging Machine
Home > Products > Glass Machines > Glass Edging Machine >

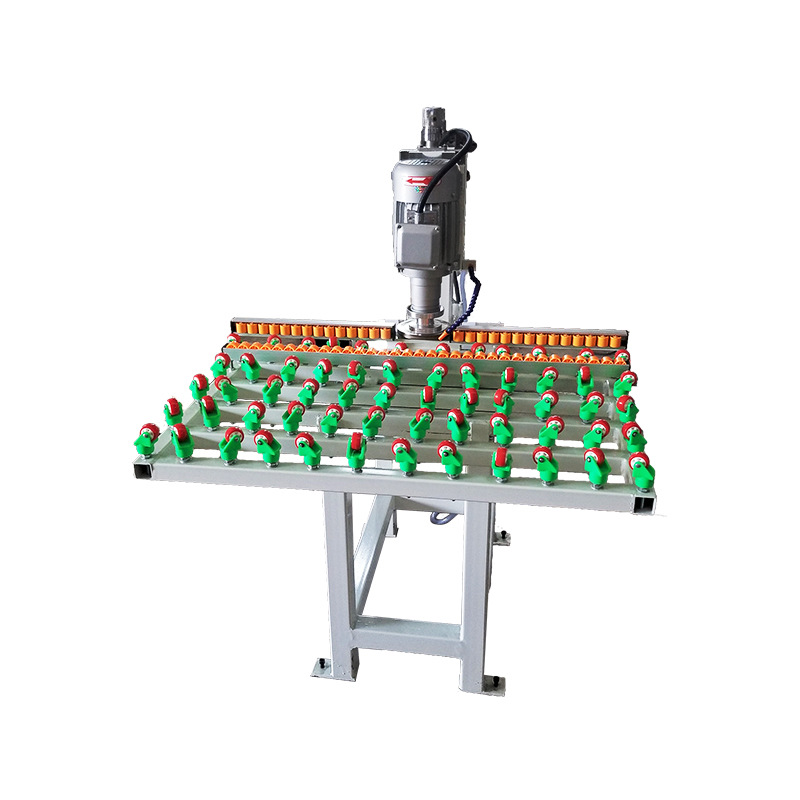

Simple Glass Edging Machine
Name Simple glass edging machine Motor/Spindles 1 Piece Feeding speed 8-15m/min Machine size 2400*1400*1300mm Min working size 300mm*300mm Voltage 380V 50Hz/Custom Made Power 1.6 kw Weight 250kg Use For Float Glass And Super White Glass Cer
9 Motors 45°Glass Straight Line Edging Machine
Model GL9325-45 Quantity of Motors 9 sets Feeding Speeds 0.55 m/min Minimum Grinding Size (alternative) 60 60 mm Thickness of the Processed Glass 325 mm Power 19.5 kW Voltage 380V / 50Hz External Dimension (LWH) 6.8 1.0 2.5 m Packing Size 3

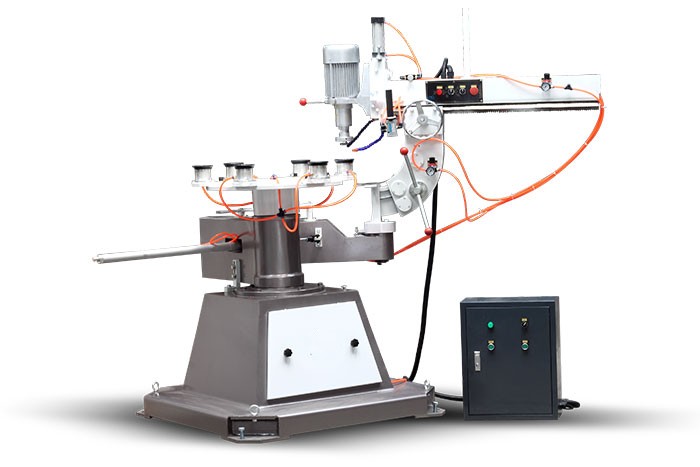

Glass Inner and Outer Circle Edging Machine
Parameter Product Name Glass Inner and Outer Circle Edging Machine Model GL1321A Glass Thickness 321 mm Maximum Diameter 1002100 mm Bevel Degree 020 Max. Width of Bevel 35 mm Rotating Speed of Working Table 0.84 r/min Rotating Speed of Inde

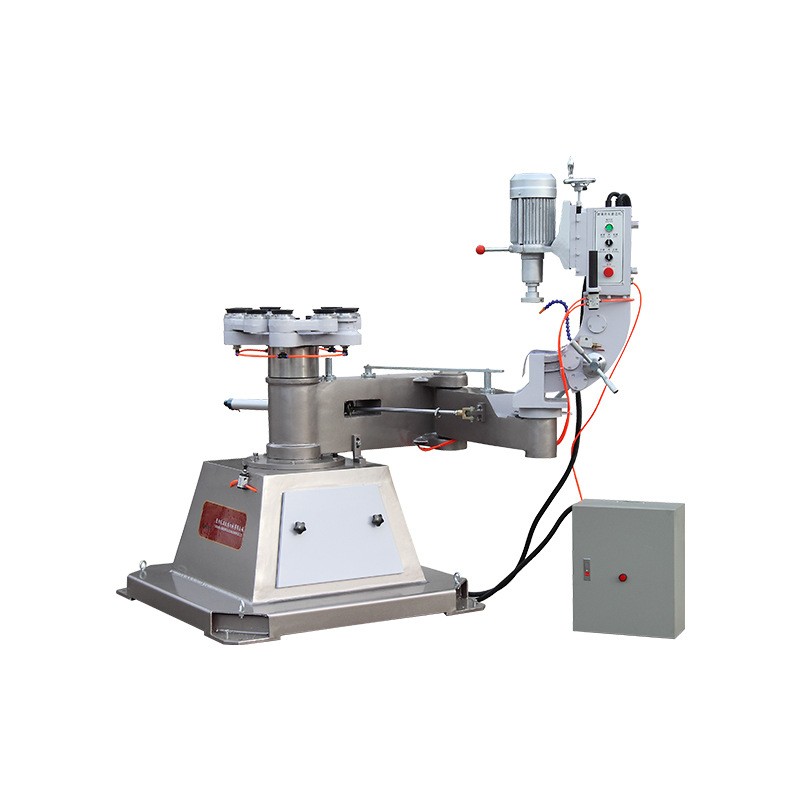

Glass Irregular Shape Edge Grinding Machine
Parameter Product Name Glass Irregular Shape Edge Grinding Machine Model GL1320 Bevel Angle 0~20 Operating Voltage/Frequency 220V / 60Hz Glass Rotation Diameter 100-2100 mm Overall Dimensions 1300 1400 1800 mm (L W H) Total Power 3 kW Proce

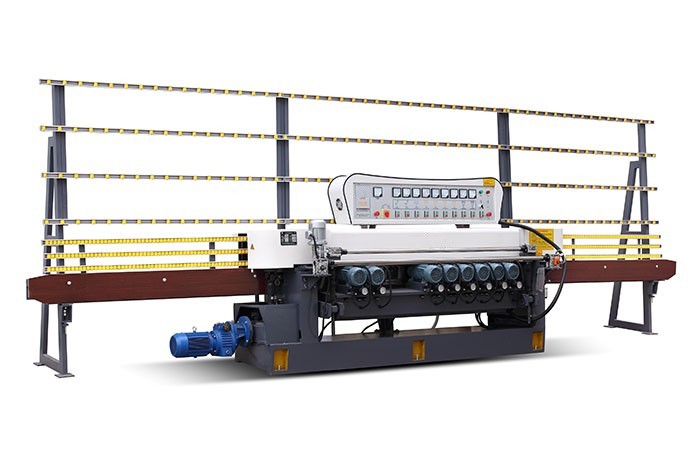

9 Motors Glass Straight Beveling Edge Grinding Machine
9 Motors Glass Straight Beveling Edge Grinding Machine Model GL261 Max Glass Width 2400mm 3600mm Min Glass Size 50 50mm Conveying Speed 0.73.5 m/min Total Power 21 kW Processing Glass Thickness 312 mm Overall Dimensions 7000 1200 2500 mm (L

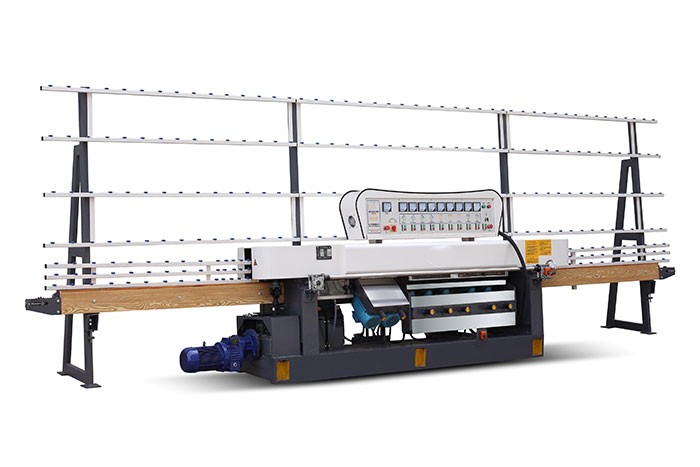

9 Motors Glass Straight Line Edging Machine
9 Motors Glass Straight Line Edging Machine Model GL9325 Processing Thickness 3~25mm Total Power 19.75kW Min. Processing Size 7070mm Main Transmission Speed 0.77m/min Bevel Angle Width 3~5mm Max. Bottom Edge Grinding 3mm Overall Dimensions

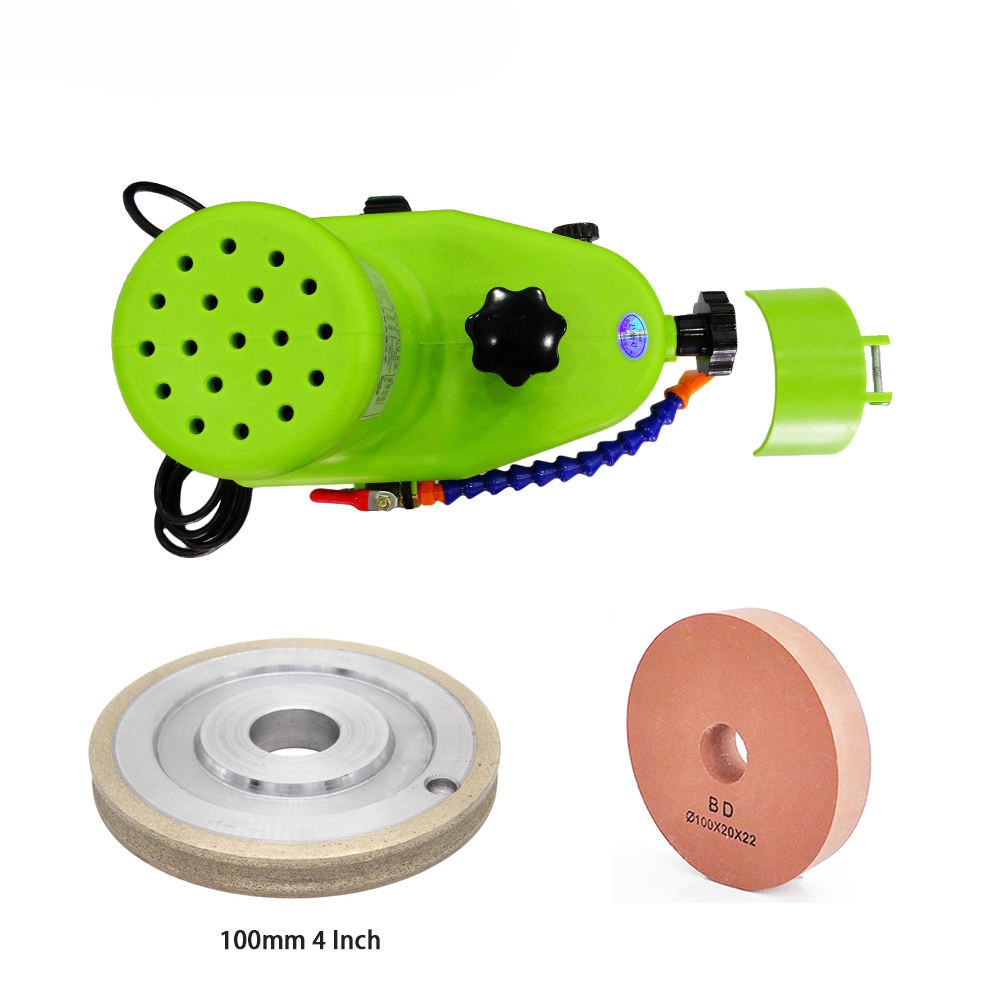

Simple Handheld Glass Edge Grinding Machine
Specification Product Name Small Glass Edge Polishing Machine Voltage 110V 220V/50Hz Power 800W Grinding speed 1-3m/min RPM 8000 r/min Dimension (L*W*H) 29*15*26 cm Weight 6.84kg Glass Thickness 3-20mm
