Product Description
Equipment Advantages

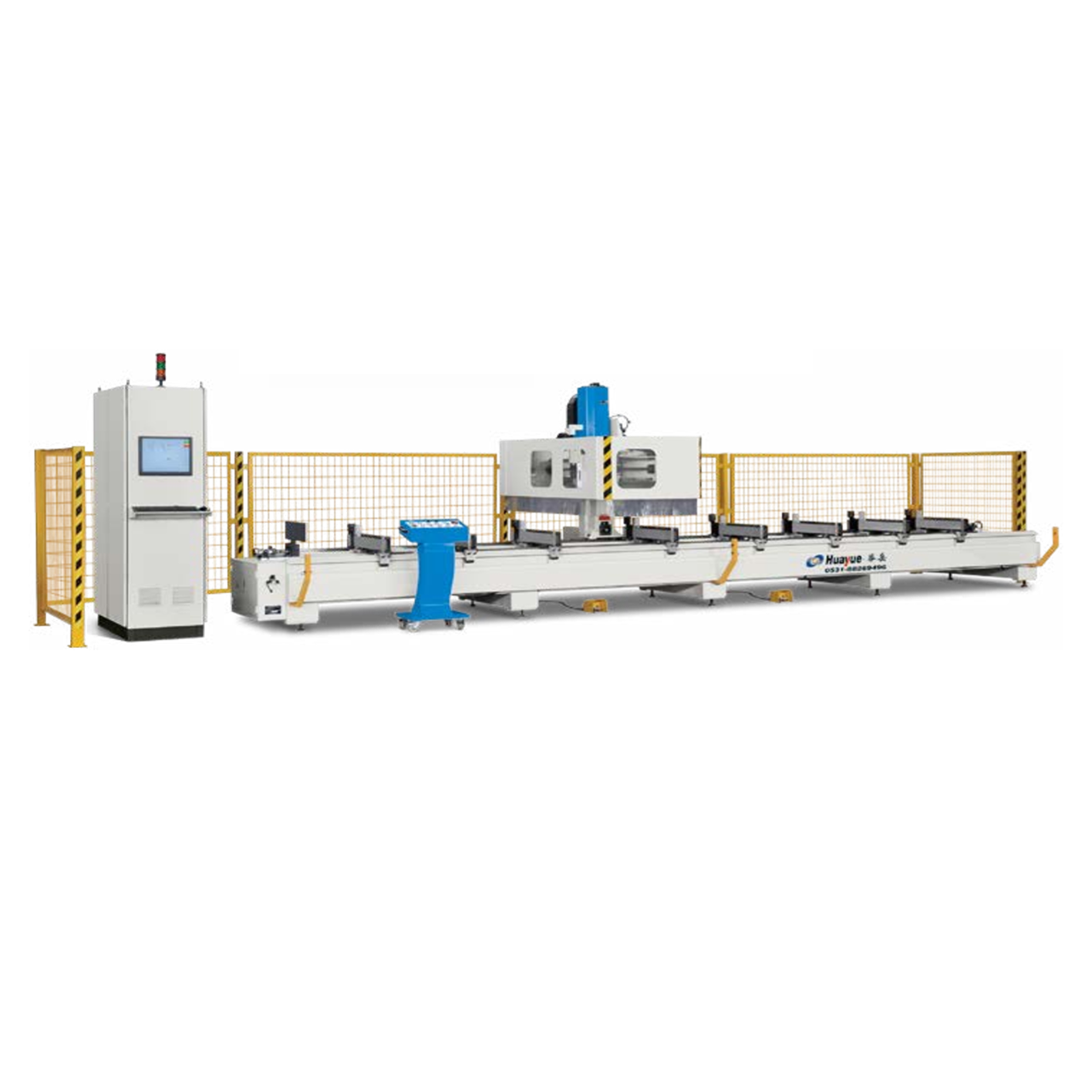

- This machine is designed for processing launder, taping, milling, and mounting hole, locking hole and other slots for diversified curtain walls and aluminum doors and windows.
- It adopts high-speed electric principal axis,which is imported from Italy.It is extremely efficient and can swingin ±90°.
- It adopts high- quality computer con trol system, which is used in industry area specially. The system has favor-able user manipulate interface program in graphics mode and processing interface. This processing interface can show related dates directly.
- It adopts high quality servo-motor,roller linear guide pair to insure the machine runs with high precision.
- The cutter storage supply 12 cutter positions, the cutter can change quickly and automatically.
- With half-close safeguard device to insure the personal safety of the operator.
- The position of clamping device can put freely.
Product Parameters
技术参数 / Technical Parameters
<table align="left" border="0" cellpadding="0" cellspacing="0" style="width:100%;> <tbody> <tr> <td colspan=" 2"="" nowrap="nowrap"> X轴行程 / X-way range 7000 mm X轴进给速度 / X-way speed 0～60 m/min Y轴行程 / Y-way range 1400 mm Y轴进给速度 / Y-way speed 0～60 m/min Z轴行程 / Z-way range 600 mm Z轴进给速度 / Z-way speed 0～20 m/min 主轴功率 / Spindle Power 5.5 kW 主轴转速 / Spindle Speed 0～18000 rpm 重复定位 / Repeat Accuracy ±0.02 mm 加工面粗糙度 / Roughness Ra 6.3 μm 电源规格 / Power Supply 380 V / 50 Hz 工作气压 / Working Pressure 0.6～0.8 MPa 机床总功率 / Total Power 13.5 kW 机床尺寸 / Machine Size 11300 × 2350 × 2550 mm
<table align="left" border="0" cellpadding="0" cellspacing="0" style="width:100%;> <tbody> <tr> <td colspan=" 2"="" nowrap="nowrap"> X轴行程 / X-way range 7000 mm X轴进给速度 / X-way speed 0～60 m/min Y轴行程 / Y-way range 1400 mm Y轴进给速度 / Y-way speed 0～60 m/min Z轴行程 / Z-way range 600 mm Z轴进给速度 / Z-way speed 0～20 m/min 主轴功率 / Spindle Power 5.5 kW 主轴转速 / Spindle Speed 0～18000 rpm 重复定位 / Repeat Accuracy ±0.02 mm 加工面粗糙度 / Roughness Ra 6.3 μm 电源规格 / Power Supply 380 V / 50 Hz 工作气压 / Working Pressure 0.6～0.8 MPa 机床总功率 / Total Power 13.5 kW 机床尺寸 / Machine Size 11300 × 2350 × 2550 mm
