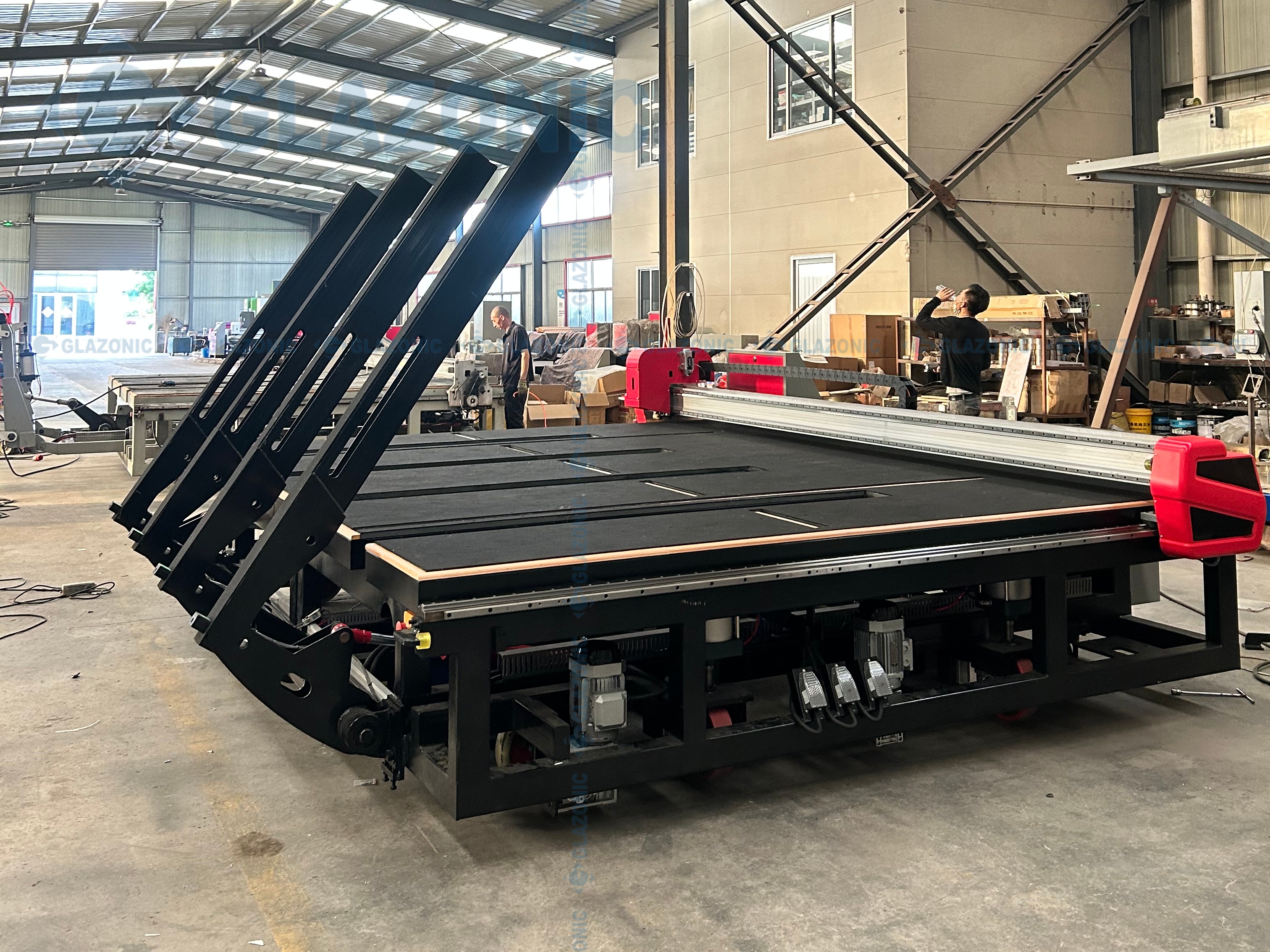

3726 All-in-one Glass Cutting Machine with Inclined Large Loading Arm



Product Introduction

The 3726 All-in-one Glass Cutting Machine with Inclined Large Loading Arm is an upgraded heavy-duty integrated glass processing device, optimized for ultra-large and heavy flat glass processing scenarios. Different from conventional straight loading arm models, this machine adopts a professional inclined large arm structure, solving the problems of unstable suction, limited bearing capacity and easy glass shaking when loading super-large glass sheets.
This equipment integrates inclined arm automatic loading, high-precision CNC cutting and air flotation positioning system in one unit. The upgraded inclined large loading arm features stronger structural rigidity and larger covering range, perfectly matching 3700×2600mm full-size glass raw materials. It can automatically complete glass suction, lifting, tilting and table feeding, completely replacing manual heavy handling. Equipped with thickened integral steel frame and stress relief treatment, the machine runs stably for a long time without deformation. With industrial CNC system and imported cutting wheel, it delivers precise and smooth cutting effect, which is the preferred equipment for medium and large factories focusing on large-size architectural glass, curtain wall glass and super-large mirror mass production.

Core Functions

1. Upgraded Inclined Large Loading Arm System
Adopts customized inclined tilt large arm structure, with enhanced mechanical rigidity and ultra-large suction coverage. It stably absorbs 3–12mm thick super-large glass sheets, effectively avoiding glass shaking, slipping and breakage during loading. The tilting feeding design conforms to the mechanical principle of large glass handling, making loading process safer and more stable.
2. High-Precision CNC Intelligent Cutting
Supports DXF drawing import, arbitrary straight and special-shaped cutting. The system intelligently optimizes nesting layout to improve raw material utilization. Adjustable cutting pressure adapts to different glass thicknesses, ensuring edge chipping-free, crack-free and smooth cutting effect for large heavy glass panels.
3. Full-Coverage Air Flotation Platform
Super-large integral air flotation table forms uniform air cushion isolation. Ultra-large glass can be pushed, adjusted and positioned freely without surface friction scratches, protecting the integrity and aesthetics of finished glass.
4. High-Stability Full Servo Driving System
X/Y axis full servo synchronous drive, with fast response speed and high repeated positioning accuracy. It effectively offsets the position deviation caused by large glass weight, ensuring consistent cutting precision in long-term batch production.
5. Intelligent Control & Multi-Safety Protection
Humanized large touch screen operation, simple programming and one-click start for batch processing. Built-in loading overload protection, suction loss protection, emergency stop and fault self-diagnosis functions, realizing safe and unattended continuous operation.

Application Scenarios

Specially designed for heavy and large-size glass processing, including architectural curtain wall glass, oversized building door and window glass, large furniture glass, super-sized mirror and thick decorative glass. Widely applicable for large glass processing factories with high requirements for loading stability and low breakage rate.

Product Advantages

✅ Upgraded Inclined Large Arm Loading: Unique tilt large arm structure, stronger bearing capacity and wider suction range, stable loading for ultra-large heavy glass without shaking or slipping.
✅ Low Glass Breakage Rate: Mechanical tilt feeding design fits large glass handling logic, effectively reducing glass cracking and damage during automatic loading.
✅ Ultra-Large Full-Size Processing: Supports full 3700×2600mm glass cutting, meeting customized and mass production demands of various oversized flat glass.
✅ Heavy-Duty & Super Stable: Thickened welded steel frame with stress relief treatment, stable operation under long-term heavy-load working conditions.
✅ High-Precision Neat Cutting: Full servo drive and imported cutting wheel ensure smooth, chip-free cutting edges for high-end glass finished products.
✅ Labor & Cost Saving: Fully automatic inclined arm loading replaces manual heavy labor, improving production efficiency and reducing comprehensive processing costs.
